JWF 1572 series ring spinning frame is a new-generation platform-based automatic doffing spinning frame developed by Jing Wei Co.,Ltd. Yuci Branch according to current development trend of the ring spinning frame ,present conditions of products and market demands,etc.,which has been designed for satisfying users' requirements of high- speed,energy-saving.highly- efficient,automatic and quick installation,keeping pace with internationally- advanced level.
With the company' s internationally- advanced technology,the new series will be an important choice for high- end customers who would like to update and upgrade the spinning frame at home and abroad. Integrated center wall and new spindle baring plate of high precision acetate to conduct high- speed spinning.Main shatt and ring rall iiadsti.
It effectively improves the negative pressure balance as a Whole Absorbing cotton fan is 40% mot e carb: Efficient than existing fans upon adoption of new technology.Featuring precise doffing. little wear and long operation life.pallet conveying system with steel belt is adopted.New Inside-outside pendulum structure is more stable and more reliably. Lifting clamp-on full yarn does no damage to the full yarn.Labor saving,quick installation and intelligence.
Innovation Founctions | |
|---|---|
| Deivce | Roving circulatory |
| Detection | Individual spindle broken end |
| System | Electronic drafting system |
| New Features | |
|---|---|
| Feature1 | Quick installation |
| Feature2 | Electronic twisting |
| Feature3 | Fast doffing |
| Feature4 | Intelligent system |
| Feature5 | Energy-saving |

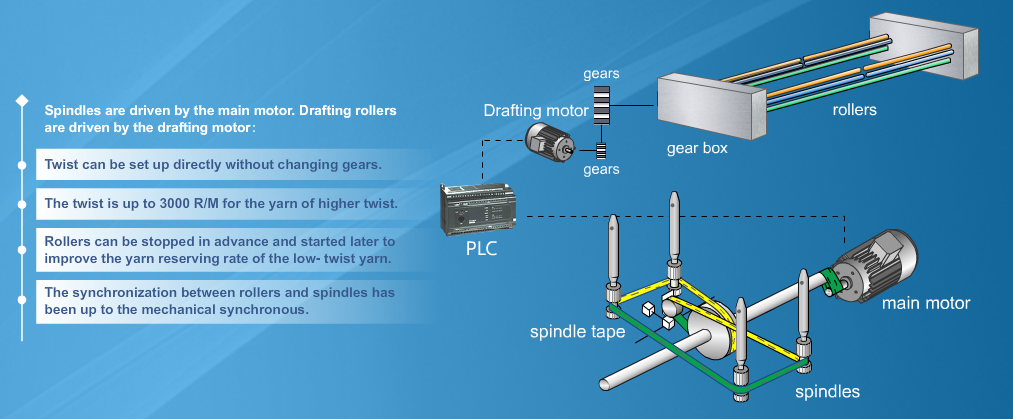

Electronic Twist

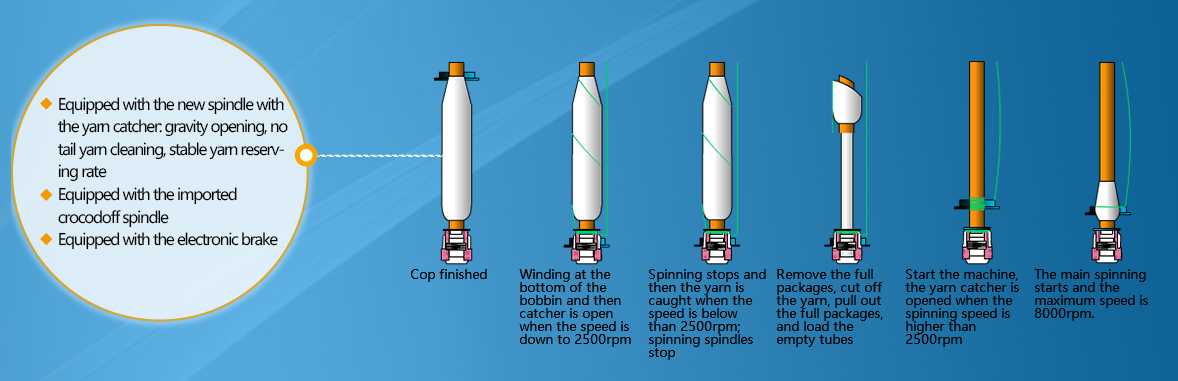

Rapid Doffing Technology
Spindles with yarn catcher
